  POWER SUPPLY    Location:  Index   >>   POWER SUPPLY

REDUNDANT

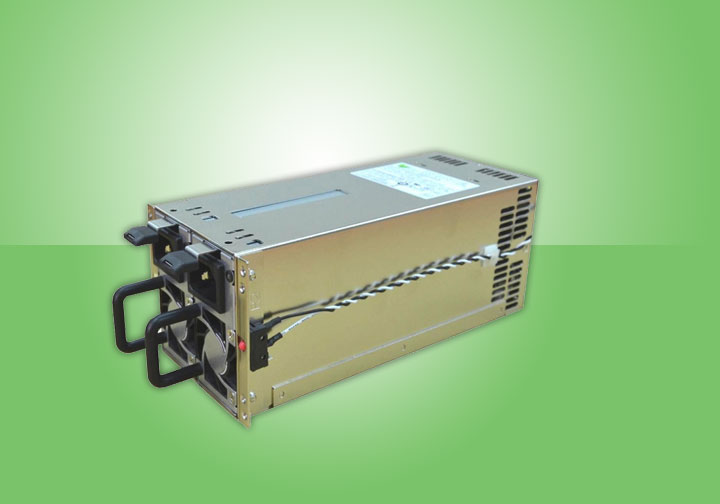

2U Redundant Power Supply

RA2 SERIES







Specification & Features

The RA2 series is designed for full digital position and is highly efficient in a short footprint.With the function of PMBus, and get a huge W-number output, it can be equipped with 2-4U

Even the above various chassis to achieve maximum institutional integration,Moreover, due to the sharing of the plug-in backplane, the modules of each W number can be arbitrarily replaced.Achieve product sharing and reduce the occurrence of sluggish inventory

Specification:
◆ AC input voltage : Rating 100V-240 VAC
◆ Frequency and current : 47-63Hz, 13-6A
◆ Input power factor correction : Active PFC
◆ Efficiency : 80+ Gold
◆ PMBus : Revison1.2 specification
◆ Protection : Over power protection Over voltage protection
                      Over current protection Short circuit protection
◆Dim(H*W*D).:82*84*217(mm)
◆Application: All of EYE IPC 2U/3U/4U chassis
◆ Output current / loading :
   RA2 – GXXXVP

Output Voltage

+5V

+3.3V

+12V

-12V

+5VSB

600W



 25A



 25A

49A



 0.8A





 3.5A

700W

58A

800W

66A

900W

75A

1000W

83A
